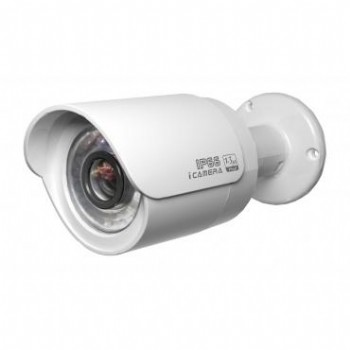

Model	DH-IPC-HFW2100P	DH-IPC-HFW2100N
General
Processor	TI DaVinci Series DSP
Operating System	Embedded LINUX
Resource	Simultaneous remote monitoring, local recording and remote control
User Interface	WEB, CMS(DSS/ PSS), DMSS, NVR
Camera
Image Sensor	1/3” 1.3 Megapixel Aptina CMOS
Effective Pixels	1280 (H)×960(V)
Electronic Shutter	Auto/Manual, 1/3~1/10000s	Auto/Manual, 1/4~1/10000s
Mini. Illumination	0.1LUX/F1.2(Color), 0.05LUX/F1.2(B/W) 0LUX(IR On)
Signal Noise Ratio	>50dB
Gain Control	Auto/Manual
White Balance	Auto/Manual
Day/Night	ICR
Lens Mount	M12
Lens	Default: 6mm (3.6mm/8mm optional)
Video
Video Compression	H.264/MJPEG
Image Resolution	1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480)
Encoding Speed	1.3M (1~15fps)+ D1(1~15fps)	1.3M (1~15fps)+ D1(1~15fps)
	720P(1~25fps)+ D1(1~25fps)	720P(1~30fps)+ D1(1~30fps)
Bit Rate	128K~8192Kbps
Snapshot	Fastest 1fps JPEG capture
Video Format	PAL	NTSC
Network
Ethernet	RJ-45 (10/100Base-T)
Network Functions	HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPNP, NTP, Bonjour, SNMP, Onvif
Remote Operation	Monitor, PTZ control, Playback, System setting, File download, Log information, Maintenance & Upgrade
Environmental
Max. IR Distance	20m
Power Supply	DC12V, PoE
Ingress Protection	IP66, 4000V thunder, surge and wave protection
Power Consumption	Max.4W
Operating Environment	-10°C~+50°C, 10%~90%
Dimension	64.43mm x145.02mm
Weight	0.35kg
